Product Code : TNGNP

Technical Data of TNGNP(pdf) (Download )


""""
Product Description:
TimesGraphTM ----Graphite Nanoplatelet ( Graphene Nanoplatelet )
Purity:>99.5wt%

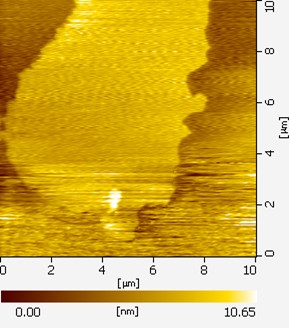

Thickness:4-20nm
layers:<20
Diameter:5-10μm
Dengsity: 0.6g/cm3
PH Value:PH=7.00-7.65(30℃)

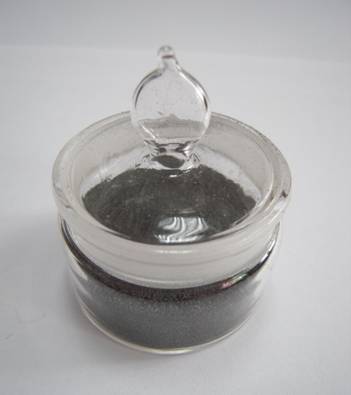

Selling State: Powder

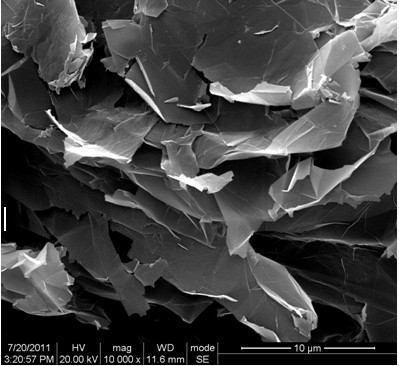

The TNGNP keeps the original crystal structure and properties of Natural Flake Graphite and has huge ratio of diameter to thickness. It can easily form uniform composite with materials like polymer, and realize a good interface.
The TNGNP also has excellent electrical conductivity, lubricity, corrosion resistance , thermostability and so on
